DESCRIPTION

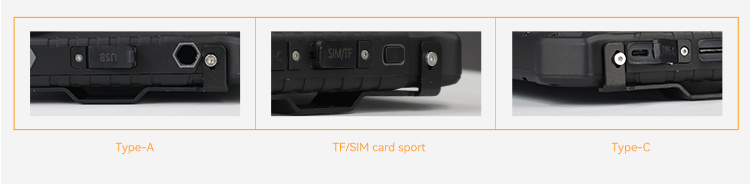

1. Type-A(Sealed Cover) | 2. Sub Camera | 3. Light sensor | 4. Charge lamp | 5. Home button |
6. Back button | 7. Volume Up | 8. Volume Down | 9. Scan button | 10. defined button |
11. Speaker | 12. Power button | 13. SIM/TF card slot(Sealed Cover) | 14. type-c(Sealed Cover) | 15. SMA interface(Optional) |
16. Barcode module(Optional) | 17. Mic | 18. 4PIN magnetic charging interface (Optional) | 19.Main camera | 20. 10PIN expansion interface (Optional) |
21. Nameplate |
Packaging & delivery
- Selling Units:
- Single item
- Single package size:
- 34X31X26 cm
- Single gross weight:
- 9.500 kg
- Picture Example:
Specification.
Hardware | ||||
CPU | MTK P60（ARM A73 2.0GHz Octa-core） | |||
GPU | Arm Mali–G72 MP3 | |||
RAM | 8G | |||
Internal Memory | 128G | |||
Main Camera | 13.0MP(AF) with flash led | |||
Sub Camera | 5.0MP | |||
Battery | 18900mAh | |||
Display | 8 inch IPS/AFFS FHD 1200*1920 industrial 1000nit Sunlight -Readable | |||
Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen | |||
IO/Sensor/Navigation | ||||
SIM Card | Nano sim card*2 | |||
TF Card | Micro SD card ( T-FLASH card) ;max 256GB | |||
Charging Port | Type-C & 4PIN magnetic charging | |||
Data interface | USB Type-A(Host)*1 Type-C(OTG)*1 | |||
Direction Sensor | Support | |||
Gravity sensor | Support | |||
Magnetic Field Sensor | Support | |||
Motion sensor | Support | |||
Rotation Vector | Support | |||
Light-sensor | Support | |||
Acceleration sensor | Support | |||
Temperature pressure sensor | Optional | |||
Charger | 5.0V 2A-10W | |||
Navigation | GPS+Beidou+Glonass+AGPS+SBAS （EPO 2.5m） | |||
Appearance | ||||
Size | 256*159*23mm（L×W×H） | |||
Weight | 1015g | |||
Color & Material | Yellow,green,gray（PC+ABS） | |||
Communications & Networking | ||||
Phone Call | GSM /WCDMA/CDMA 1X/VoLTE | |||
2G | GSM/CDMA 1X/EDGE/GPRS/WAP | |||
2G Band | GSM（B2/3/5/8） | |||
3G | WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps),EVDO | |||
3G Band | WCDMA（B1/2/5/8）,Evdo: BC0/BC1 CDMA: BC0/BC1 | |||
4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink | |||
4G Band | TD-LTE（B38/39/40/41）；FDD LTE（B1/2/3/4/5/7/8/12/17/20/28） | |||
WI-FI | Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac | |||
BT | 4.2 Low Energy (LE) | |||
Industrial & Reliability Design | ||||
Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g | |||
Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 | |||
Waterproof | Class 7 ( IEC 60529 ) | |||
Dustproof | Class 6 ( IEC 60529 ) | |||
Reliability | MTBF>5000h；MTTR<0.5h | |||
Operating temperature | -20°C to 55°C | |||
Storage Temperature | -40°C to 80°C | |||
RH | 5% to 95% (No condensation) | |||
Operating Altitude | Max: 4,500 m（15,000 feet） | |||
Certification/OS/Software | ||||
Certification | 3C /FCC/CE/ROHS/IP67（IEC 60529） | |||
Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified， Chinese,Chinese Traditional,etc | |||
OS | Andriod 10.0 | |||
