Description
Packaging & delivery
- Selling Units:
- Single item
- Single package size:
- 42X33X30 cm
- Single gross weight:
- 14.000 kg
- Package Type:
Product size: 237*137*29mm Box size: 340*110*210mm Quantity per ctn: 560g N.W: 700g G.W: 1500g carton size: 420*330*300mm 10set/ctn

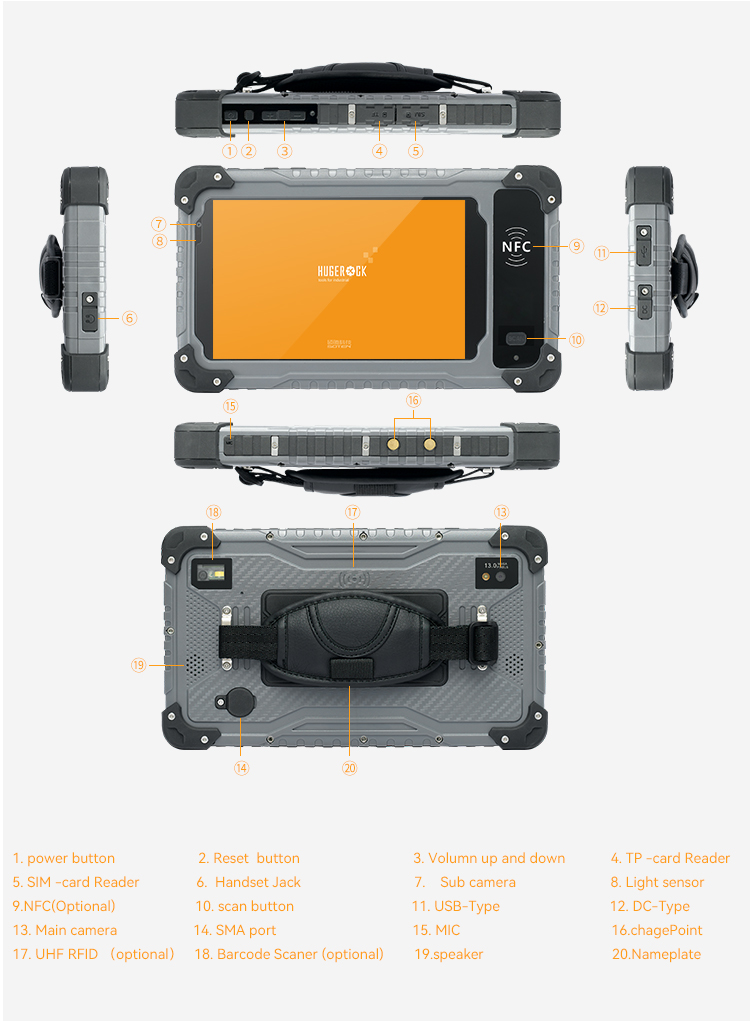

- Picture Example:
Specification
Hardware | ||||
CPU | MTK P60（ARM A73 2.0GHz Octa-core） | |||
GPU | Arm Mali–G72 MP3 | |||
RAM | 8G | |||
Internal Memory | 128G | |||
External Memory | Micro SD card ( T-FLASH card), max 128GB | |||
Main Camera | 13.0MP(AF) with flash led | |||
Battery | 10000mAh | |||
Display | 7 inch IPS/AFFS 720*1280 HD industrial 1000nit Sunlight Readable | |||
Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen | |||
IO/Sensor/Navigation | ||||
SIM Card | 1.8/3.3V SIM card | |||
TF Card | Micro SD card ( T-FLASH card) ;max 128GB | |||
Headphone | 3.5mm (CTIA） | |||
Data interface | USB Type-c 24pin support OTG | |||
Direction Sensor | Support | |||
Gravity sensor | Support | |||
Magnetic Field Sensor | Support | |||
Motion sensor | Support | |||
Rotation Vector | Support | |||
Light-sensor | Support | |||
Acceleration sensor | Support | |||
Charger | 5.0V 2A-10W | |||
Navigation | GPS+Beidou+Glonass+AGPS+SBAS （EPO 2.5m） | |||
Appearance | ||||
Size | 237*137*29mm（L×W×H） | |||
Weight | 780g | |||
Color & Material | Black&yellow Black&green Black&Gray | |||
Communications & Networking | ||||
Phone Call | GSM /WCDMA/CDMA 1X/VoLTE | |||
2G | GSM/CDMA 1X/EDGE/GPRS/WAP | |||
2G Band | GSM（B2/3/5/8） | |||
3G | WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps),EVDO | |||
3G Band | WCDMA（B1/2/5/8）,Evdo: BC0/BC1 CDMA: BC0/BC1 | |||
4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink | |||
4G Band | TD-LTE（B38/39/40/41）；FDD LTE（B1/2/3/4/5/7/8/12/17/20/28） | |||
WI-FI | Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac | |||
BT | 4.2 Low Energy (LE) | |||
Industrial & Reliability Design | ||||
Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g | |||
Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 | |||
Waterproof | Class 5 ( IEC 60529 ) | |||
Dustproof | Class 6 ( IEC 60529 ) | |||
Reliability | MTBF>5000h；MTTR<0.5h | |||
Operating temperature | -20°C to 55°C | |||
Storage Temperature | -40°C to 80°C | |||
RH | 5% to 95% (No condensation) | |||
Operating Altitude | Max: 4,500 m（15,000 feet） | |||
Certification/OS/Software | ||||
Certification | 3C /FCC/CE/ROHS/IP65（IEC 60529） | |||
Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified， Chinese,Chinese Traditional,etc | |||
OS | Andriod 10.0 | |||
Package/Warranty terms/OEM | ||||
Warranty | 24 months | |||
OEM/ODM | Support | |||
Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box（Can be customized logo）/Aircraft box/Toolkit（optional） | |||
Function Modules
LF RFID data collection | ||||
125K LF ID Module | LF RFID，125K | |||
134 LF RFID Module | LF RFID，134k Animal module | |||
HF RFID/NFC | ||||
Frequency | 13.56MHz | |||
Protocol standard | ISO14443A/B,ISO15693，NFC | |||
Label standard | M1(S50、S70)、CPU、NFC | |||
Read-write distance | 2-5cm | |||
UHF RFID | ||||
Air interface protocol | EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C | |||
Operating spectrum range | 902Mhz – 928Mhz / 865MHz – 868MHz(Optional) | |||
Output range | 0-33dbm | |||
Output accuracy | +/- 1dB | |||
Output power level | +/- 0.2dB ,The label is sensitive and stable. | |||
Reading distance | >=1.8m(E41 tag) | |||
